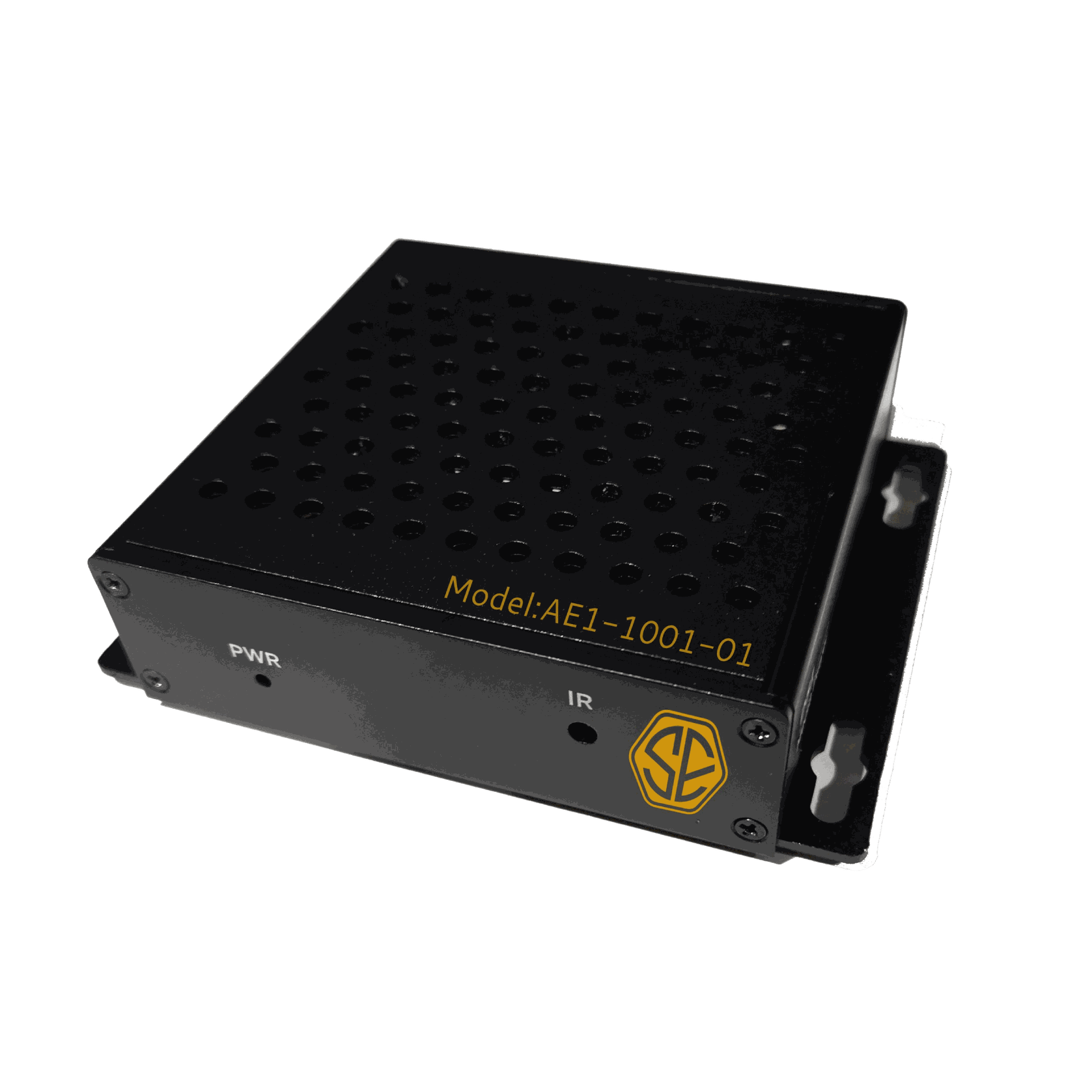

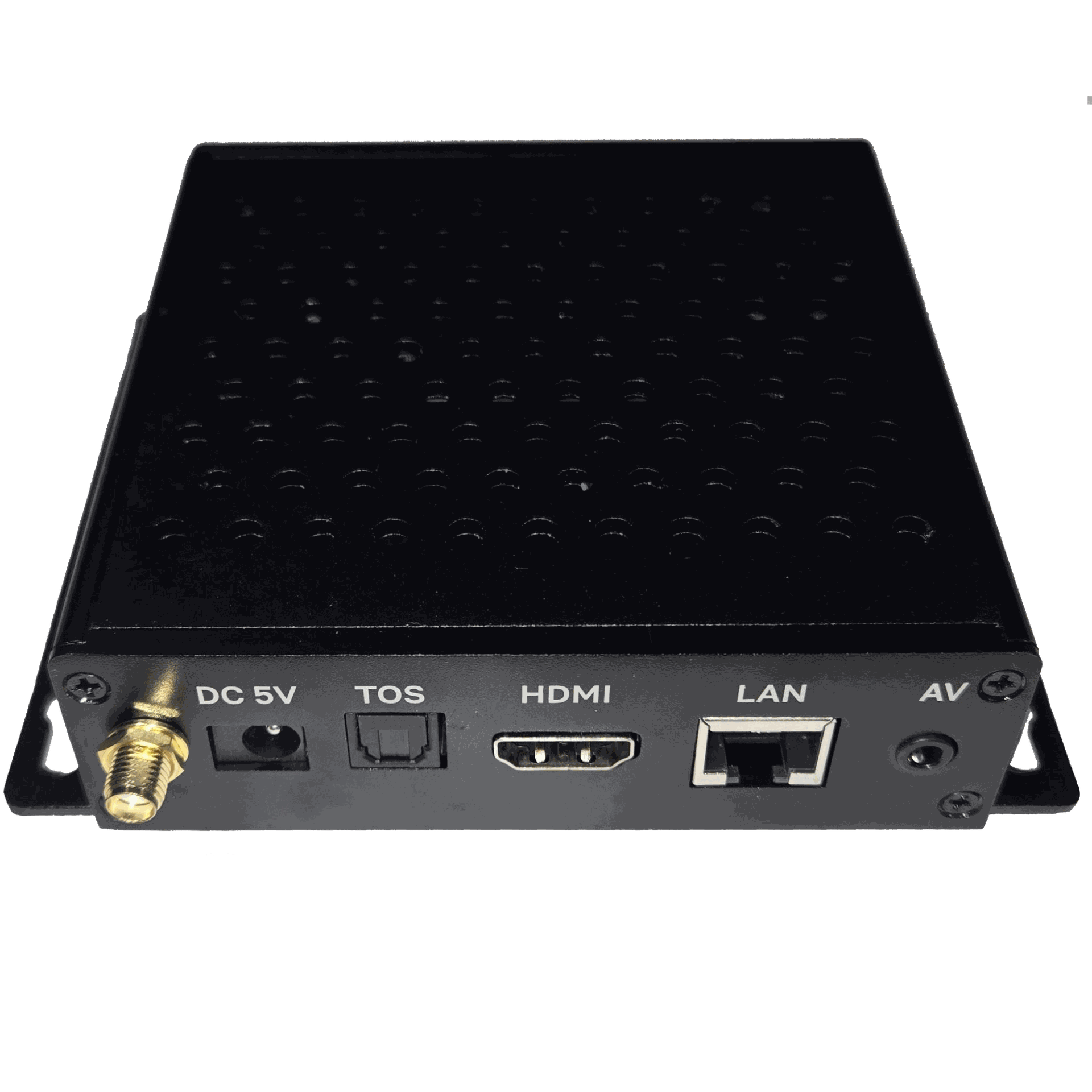

Android Base Player - AB1-1001-01
Entry Android unit
- Powered by Rockchip RK3528 Processor with Mali G450 MP2 GPU.
- 4K 60FPS video decoding and 1 HDMI 2.1 output.
- WiFi 6, Bluetooth 5.0, and 100M Ethernet for seamless connectivity.
Download Datasheet | |
Model | AE-1001-01 |
CPU name | RK3528 |
CPU cores | 4 cores A53 |
GPU | Mali 450 MP2 |
NPU | N/A |
RAM | 4G |
ROM | 32G |
Output resolution | 3840*2160@60Hz |
Input resolution | N/A |
LAN 1 | 100Mbps |
POE | N/A |
Wi-Fi | 2.4/5G Wi-Fi |
Bluetooth | Yes |
video out 1 | HDMI output 1 |
USB 2.0 | USB 2.0 x1 |
USB 3.0 | USB 3.0 x1 |
Card slot 1 | Micro SD card slot |
Other connectors | Optical SPDIF |
Chassis | Full aluminum chassis |
Product size (mm) | 130 x 98 x 27 mm |
Product size (in) | 5.12 x 3.86 x 1.06 in |
