Android Premium Rack Player - AR1-2101-11

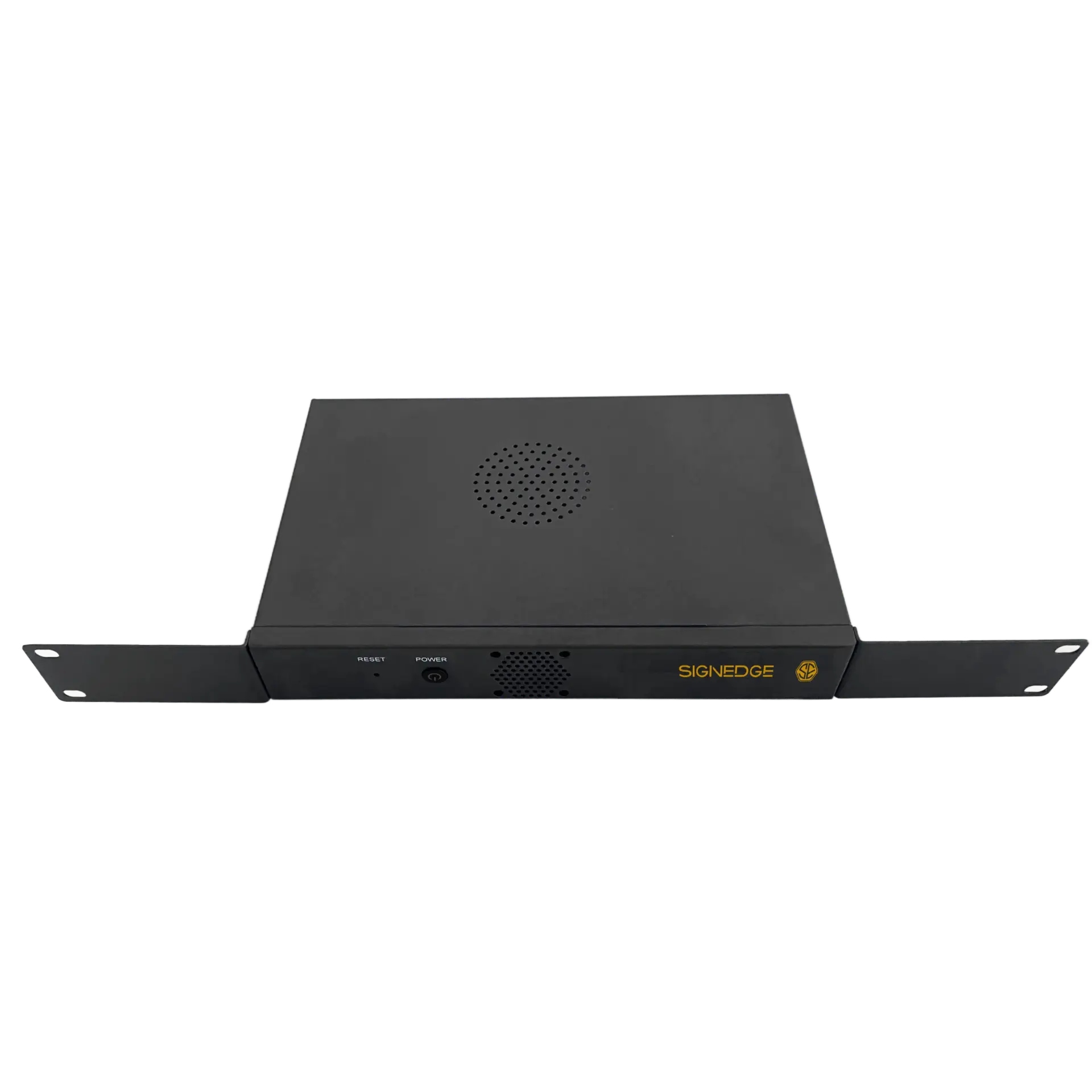

1U Android Rack Unit
- Rockchip RK3588 Octa-core Processors with Mali G610 MP4 GPU.
- 8K 60FPS video decoding and 2 HDMI 2.1 outputs.
- WiFi 6, Bluetooth 5.0, and Gigabit Ethernet for seamless connectivity.
Download Datasheet | |
SOC | Rockchip RK3588 Octa-core processor, Quad-core Cortex A76 and Quad-core Cortex A55 |
GPU | Mali G610 MP4 GPU (so called Odin) |
NPU | 6 TOPS |
Video decode | 8K 10 bit decoder |
RAM | LPDDR4X (8G) |
ROM | eMMC (32G) |
Storage expansion | SATA port |
Video output | 2x HDMI 2.1 port up to 8K@60Hz (please noted for 8K output can only show at one port)Display port 1.4USB-C port (DP protocol) |
Video input | HDMI input |
Video decoder | 8K 60Hz H.265, VP9, AVS28K 30Hz H.264, AVC/MVC4K 60Hz, AVI, 1080P 60Hz MPEG-2, MPEG-1, VC-1, VP8 |
Video encoder | Real-time H.265/H.264 video encoding up to 8Kp30, also usable as a multi-channel encoder in parallel |
Network | Gigabit Ethernet R45 |
WiFi and Bluetooth | Dual band WiFi 6 (2T2R) and Bluetooth 5.0AP6275P module, External WiFi antenna x2 |
Industrial ports | GPIO 5-pin x2Serial port x2 |
Power adaptor | 12V 2Ah |
USB | USB3.0 x1 USB2.0 x2 USB Type-C x1 |
Power button | ON/OFF |
IR receiver | Support IR remote control |
